Introduction

The maxvol algorithm is a D-optimal design method for selecting sampling locations by maximizing the determinant (volume) of a feature submatrix. Unlike traditional probability-based sampling, maxvol takes a deterministic optimal design approach that selects locations with maximum diversity in feature space.

This method is particularly effective when:

  • Features explain soil variability: Terrain attributes correlate with soil properties
  • Deterministic selection is preferred: Non-random, reproducible point placement
  • Few samples are available: Optimal coverage with minimal sampling effort
  • Model-based inference is planned: Kriging or machine learning predictions

Theoretical Background

The Maximum Volume Principle

Given a matrix 𝐀\mathbf{A} of size mΓ—nm \times n (where mm represents locations and nn represents features), the maxvol algorithm selects kk rows that form a submatrix 𝐀̂\hat{\mathbf{A}} with approximately maximum determinant:

𝐀̂=argmaxsubmatrix|det(𝐀k)| \hat{\mathbf{A}} = \arg\max_{\text{submatrix}} |\det(\mathbf{A}_k)|

Geometrically, the determinant represents the volume of the nn-dimensional parallelepiped spanned by the row vectors. Maximizing this volume ensures that selected locations have maximal diversity in feature space.

D-Optimal Design

The maxvol algorithm implements D-optimal experimental design, which minimizes the determinant of the covariance matrix of parameter estimates. In practical terms, D-optimal designs:

  1. Spread samples across the feature space
  2. Minimize correlation between sample locations in feature space
  3. Maximize information for parameter estimation

Algorithm Steps

  1. Feature Matrix Construction: Create matrix 𝐀\mathbf{A} where each row represents a location and columns represent features (elevation, slope, TWI, etc.)

  2. Normalization (optional): Standardize features to zero mean and unit variance

  3. Rectangular Maxvol (rect_maxvol):

    • Initialize with kk random rows
    • Compute coefficient matrix 𝐁=π€β‹…π€Μ‚βˆ’1\mathbf{B} = \mathbf{A} \cdot \hat{\mathbf{A}}^{-1}
    • Iteratively swap rows to maximize volume
    • Apply distance constraints if specified

  4. Point Selection: Selected row indices correspond to sampling locations

Basic Usage

library(soilsampling)
library(sf)

# Create a study area with terrain features
poly <- st_polygon(list(rbind(
  c(0, 0), c(100, 0), c(100, 50), c(0, 50), c(0, 0)
)))
study_area <- st_sf(geometry = st_sfc(poly))

# In practice, you would compute features from a DEM
# For this example, we'll create a grid with synthetic features
set.seed(42)

# Create fine grid to represent potential sampling locations
grid <- st_make_grid(study_area, cellsize = c(2.5, 2.5), what = "centers")
grid_sf <- st_sf(geometry = grid)
grid_sf <- grid_sf[st_intersects(grid_sf, study_area, sparse = FALSE)[,1], ]

# Add synthetic terrain features
coords <- st_coordinates(grid_sf)
grid_sf$elevation <- coords[,2] + 10 * sin(coords[,1] / 20) + rnorm(nrow(coords), 0, 2)
grid_sf$slope <- abs(cos(coords[,1] / 15) * 5 + rnorm(nrow(coords), 0, 1))
grid_sf$twi <- 10 - grid_sf$slope + rnorm(nrow(coords), 0, 0.5)
grid_sf$aspect <- (atan2(coords[,2] - 25, coords[,1] - 50) + pi) / (2 * pi) * 360

Simple Maxvol Sampling

# Select 20 sampling points using maxvol
samples_maxvol <- ss_maxvol(
  grid_sf,
  n = 20,
  features = c("elevation", "slope", "twi", "aspect"),
  normalize = TRUE,
  add_coords = TRUE
)

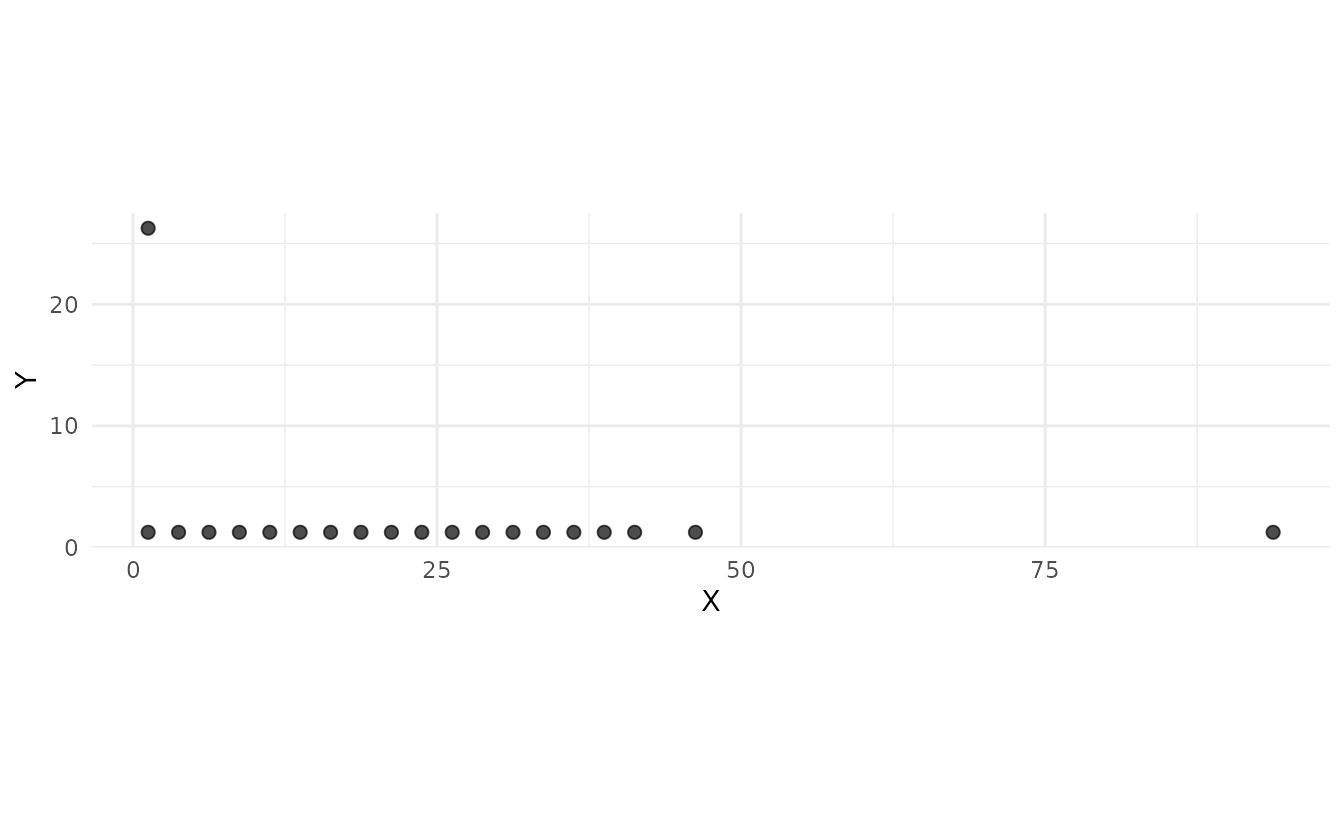

print(samples_maxvol)
#> NA
#> NA
#> Number of samples: 20

# Plot results
ss_plot_samples(samples_maxvol)

With Distance Constraint

To avoid spatial clustering, apply a minimum distance constraint:

# Select points with minimum 10-unit spacing
samples_constrained <- ss_maxvol(
  grid_sf,
  n = 20,
  features = c("elevation", "slope", "twi"),
  min_dist = 10,
  normalize = TRUE,
  add_coords = TRUE
)

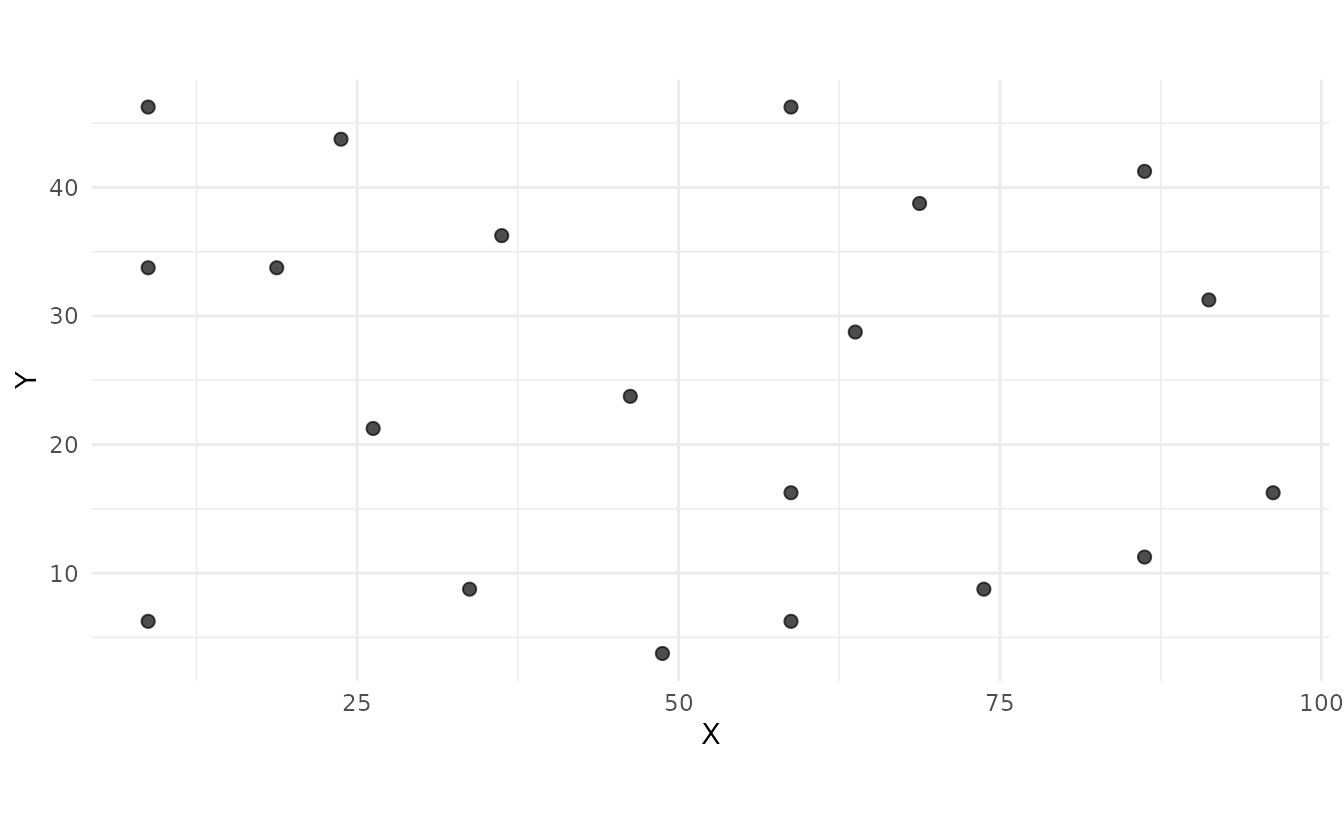

ss_plot_samples(samples_constrained)

Feature Selection

The choice of features is crucial for maxvol performance. Common terrain features for soil sampling:

Topographic Features

# Terrain features commonly used in pedometrics
features_topo <- c(
  "elevation",      # Height above reference
  "slope",          # Rate of elevation change
  "aspect",         # Direction of slope
  "twi"             # Topographic Wetness Index
)

# Other useful features (if computed from DEM):
# - Curvature (plan, profile)
# - Flow accumulation
# - Closed depressions
# - Topographic Position Index (TPI)
# - Terrain Ruggedness Index (TRI)

Adding Coordinates

Including coordinates as features balances feature space and geographic space:

# Without coordinates: purely feature-based
samples_no_coords <- ss_maxvol(
  grid_sf,
  n = 20,
  features = c("elevation", "slope"),
  add_coords = FALSE,
  normalize = TRUE
)

# With coordinates: balances features and geography
samples_with_coords <- ss_maxvol(
  grid_sf,
  n = 20,
  features = c("elevation", "slope"),
  add_coords = TRUE,  # Default
  normalize = TRUE
)

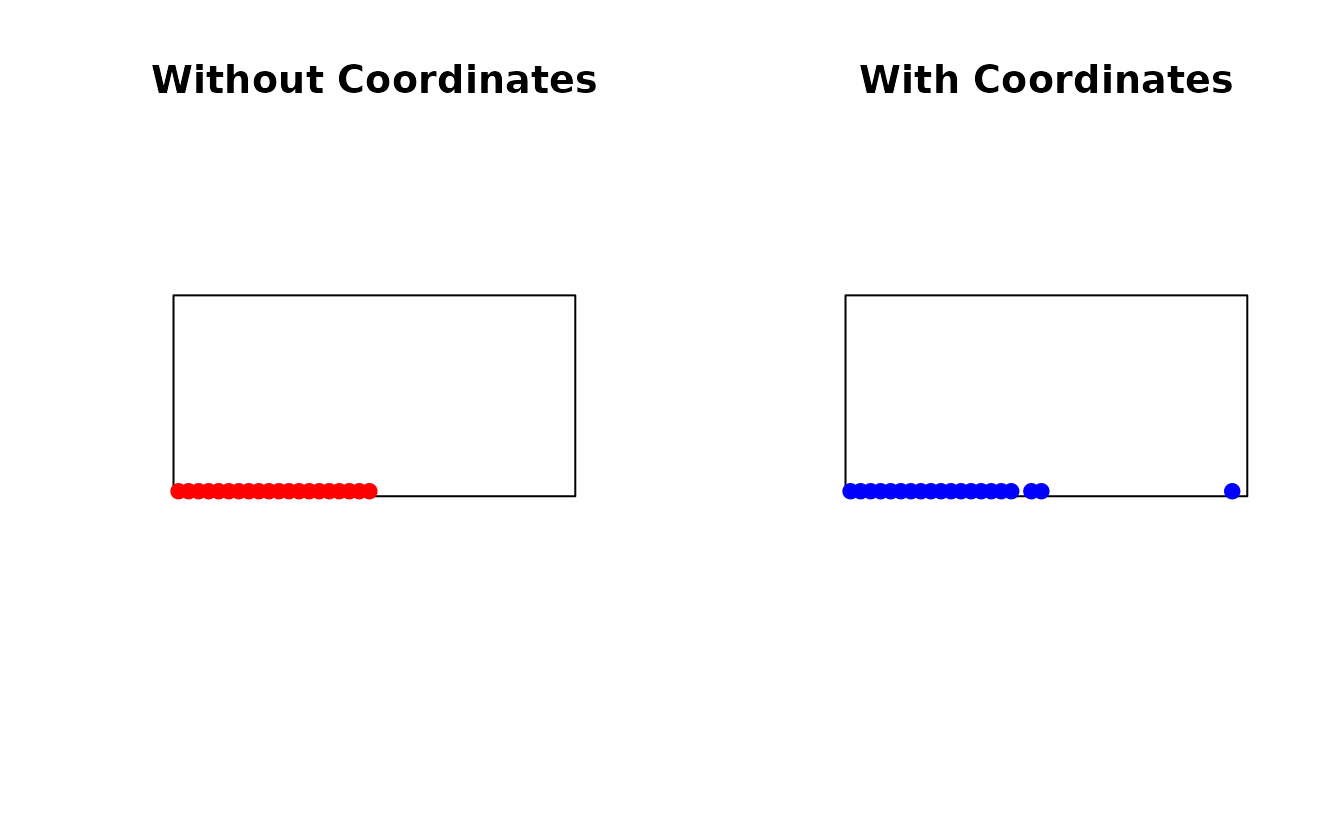

par(mfrow = c(1, 2))
plot(st_geometry(study_area), main = "Without Coordinates")
plot(st_geometry(samples_no_coords$samples), add = TRUE, pch = 19, col = "red")

plot(st_geometry(study_area), main = "With Coordinates")
plot(st_geometry(samples_with_coords$samples), add = TRUE, pch = 19, col = "blue")

par(mfrow = c(1, 1))

Feature Normalization

Normalization is important when features have different scales:

# Check feature scales
summary(grid_sf[, c("elevation", "slope", "twi")])
#>    elevation          slope              twi            geometry
#>  Min.   :-13.53   Min.   :0.01217   Min.   : 1.527   POINT  :800
#>  1st Qu.: 13.97   1st Qu.:2.05764   1st Qu.: 5.293   epsg:NA:  0
#>  Median : 26.67   Median :3.56345   Median : 6.490
#>  Mean   : 26.33   Mean   :3.36774   Mean   : 6.644
#>  3rd Qu.: 38.62   3rd Qu.:4.58750   3rd Qu.: 7.998
#>  Max.   : 61.51   Max.   :8.34239   Max.   :11.528

# Without normalization: features with larger variance dominate
samples_raw <- ss_maxvol(
  grid_sf,
  n = 15,
  features = c("elevation", "slope", "twi"),
  normalize = FALSE,
  add_coords = FALSE
)

# With normalization: equal weight to all features
samples_norm <- ss_maxvol(
  grid_sf,
  n = 15,
  features = c("elevation", "slope", "twi"),
  normalize = TRUE,  # Recommended
  add_coords = FALSE
)

Recommendation: Always use normalize = TRUE unless all features are already on similar scales.

Distance Constraint Tuning

The distance constraint prevents spatial clustering when features vary locally:

# No distance constraint
samples_no_dist <- ss_maxvol(
  grid_sf,
  n = 20,
  features = c("elevation", "slope", "twi"),
  min_dist = NULL
)

# Small distance constraint
samples_small_dist <- ss_maxvol(
  grid_sf,
  n = 20,
  features = c("elevation", "slope", "twi"),
  min_dist = 5
)

# Large distance constraint
samples_large_dist <- ss_maxvol(
  grid_sf,
  n = 20,
  features = c("elevation", "slope", "twi"),
  min_dist = 15
)

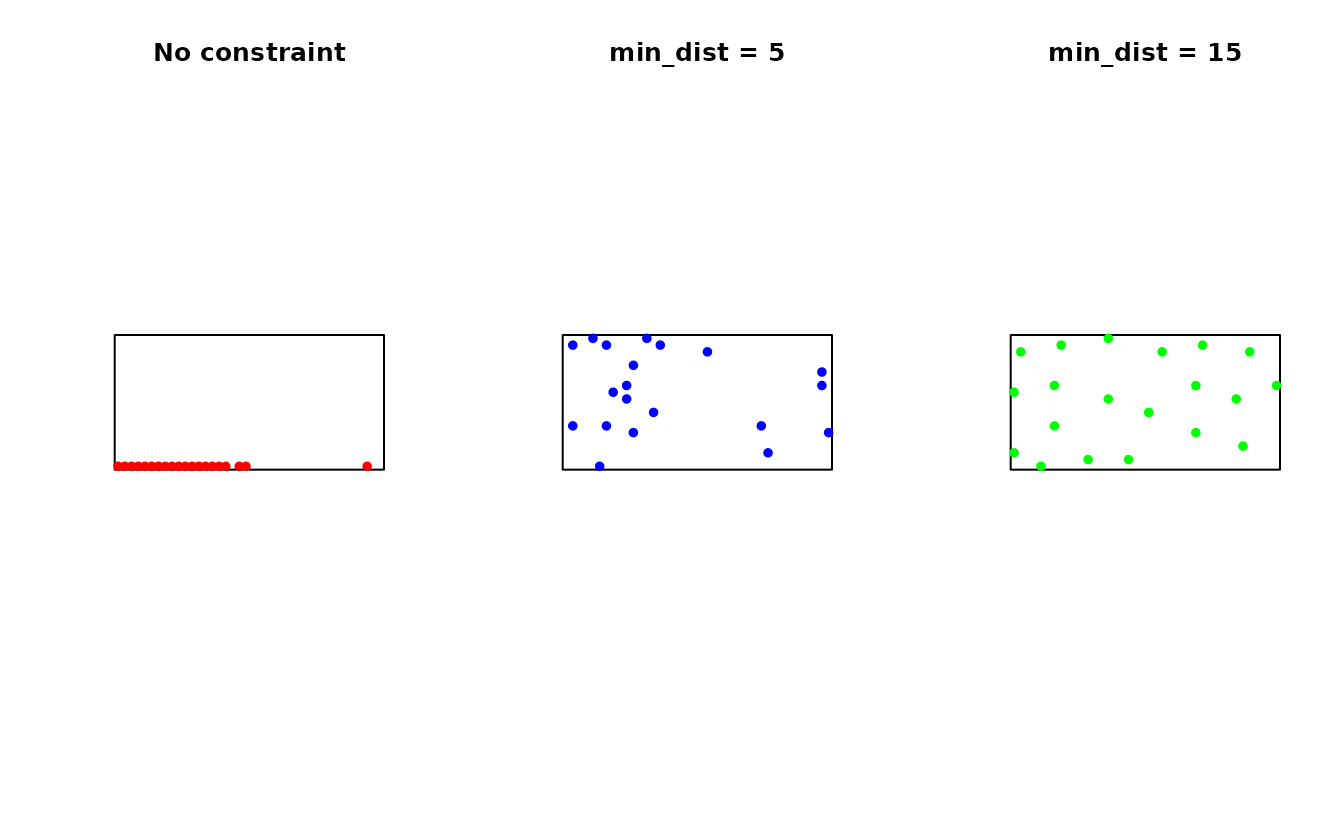

par(mfrow = c(1, 3))
plot(st_geometry(study_area), main = "No constraint")
plot(st_geometry(samples_no_dist$samples), add = TRUE, pch = 19, col = "red", cex = 0.8)

plot(st_geometry(study_area), main = "min_dist = 5")
plot(st_geometry(samples_small_dist$samples), add = TRUE, pch = 19, col = "blue", cex = 0.8)

plot(st_geometry(study_area), main = "min_dist = 15")
plot(st_geometry(samples_large_dist$samples), add = TRUE, pch = 19, col = "green", cex = 0.8)

par(mfrow = c(1, 1))

Choosing min_dist

Guidelines for setting the distance constraint:

  1. Study area size: Larger areas β†’ larger min_dist
  2. Terrain ruggedness: More rugged β†’ smaller min_dist (features vary locally)
  3. Sample size: More samples β†’ smaller min_dist
  4. Soil mapping unit size: Use typical minimum mapping unit diameter
# Rule of thumb: min_dist = (study area extent) / (2 * sqrt(n_samples))
bbox <- st_bbox(study_area)
extent <- sqrt((bbox$xmax - bbox$xmin) * (bbox$ymax - bbox$ymin))
n_samples <- 20
suggested_min_dist <- extent / (2 * sqrt(n_samples))

cat("Suggested min_dist:", round(suggested_min_dist, 1), "\n")
#> Suggested min_dist: 7.9

Comparison with Other Methods

set.seed(123)

# Maxvol sampling
samp_maxvol <- ss_maxvol(
  grid_sf,
  n = 25,
  features = c("elevation", "slope", "twi"),
  min_dist = 8,
  normalize = TRUE
)

# Spatial coverage (k-means based)
samp_coverage <- ss_coverage(study_area, n_strata = 25, n_try = 5)

# Simple random
samp_random <- ss_random(study_area, n = 25)

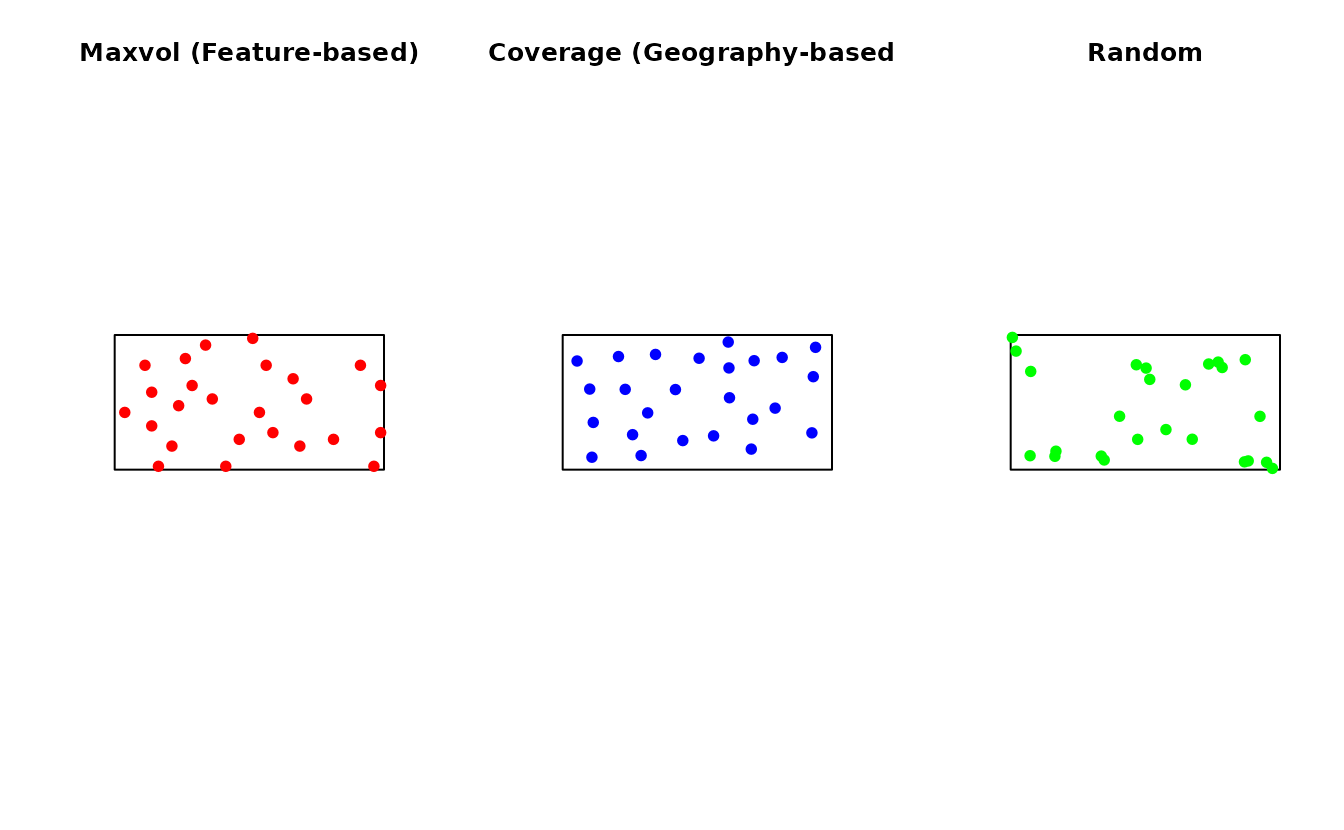

par(mfrow = c(1, 3))

plot(st_geometry(study_area), main = "Maxvol (Feature-based)")
plot(st_geometry(samp_maxvol$samples), add = TRUE, pch = 19, col = "red")

plot(st_geometry(study_area), main = "Coverage (Geography-based)")
plot(st_geometry(samp_coverage$samples), add = TRUE, pch = 19, col = "blue")

plot(st_geometry(study_area), main = "Random")
plot(st_geometry(samp_random$samples), add = TRUE, pch = 19, col = "green")


par(mfrow = c(1, 1))

Key Differences

Method Selection Criterion Randomness Distance Control
Maxvol Feature diversity Deterministic Optional constraint
Coverage Geographic spread Deterministic Stratum-based
Stratified Geographic + random Random Stratum-based
Random Uniform probability Random None

Practical Workflow

Step 1: Prepare Feature Data

library(terra)  # For raster processing

# Load DEM
dem <- rast("path/to/dem.tif")

# Compute terrain features
slope <- terrain(dem, "slope")
aspect <- terrain(dem, "aspect")
tpi <- terrain(dem, "TPI")
tri <- terrain(dem, "TRI")

# Compute TWI (requires flow direction)
# ... (depends on your workflow)

# Stack features
features_stack <- c(dem, slope, aspect, tpi, tri)

# Convert to points
feature_points <- as.points(features_stack)
feature_sf <- st_as_sf(feature_points)

Step 2: Run Maxvol

# Select sampling points
samples <- ss_maxvol(
  feature_sf,
  n = 50,
  features = c("elevation", "slope", "aspect", "tpi", "tri"),
  min_dist = 100,  # meters, adjust for your study
  normalize = TRUE,
  add_coords = TRUE,
  verbose = TRUE
)

# Check convergence
if (!samples$converged) {
  warning("Maxvol did not converge. Consider increasing max_iters.")
}

Step 3: Export Results

# Get coordinates
coords <- ss_to_data_frame(samples)

# Export for field work
write.csv(coords, "maxvol_sampling_points.csv", row.names = FALSE)

# Export as GeoPackage
st_write(ss_to_sf(samples), "maxvol_points.gpkg")

Advanced Usage

Custom Feature Matrix

You can provide your own feature matrix:

# Create custom feature matrix
coords_mat <- st_coordinates(grid_sf)
n_loc <- nrow(coords_mat)

custom_features <- matrix(
  c(
    grid_sf$elevation,
    grid_sf$slope,
    grid_sf$twi
  ),
  ncol = 3
)
colnames(custom_features) <- c("elev", "slope", "twi")

# Use with maxvol
samples_custom <- ss_maxvol(
  custom_features,
  n = 20,
  coords = coords_mat,
  normalize = TRUE
)

Integration with Existing Functions

Maxvol can complement existing sampling schemes:

# Use maxvol to densify an existing sample
# Suppose we have prior samples
prior_samples <- ss_random(study_area, n = 5)

# Use stratification to avoid prior samples
# Then use maxvol for additional points
# (This would require custom code to exclude prior locations)

Performance Considerations

Algorithm Complexity

  • Time complexity: O(kβ‹…mβ‹…n2β‹…iterations)O(k \cdot m \cdot n^2 \cdot \text{iterations})
  • Space complexity: O(mβ‹…n)O(m \cdot n)

where: - mm = number of candidate locations - nn = number of features - kk = number of samples to select

Computational Tips

# For large datasets, reduce candidate locations
# Option 1: Coarser grid
grid_coarse <- st_make_grid(study_area, cellsize = c(5, 5), what = "centers")

# Option 2: Pre-filter using simpler criteria
# (e.g., remove unsuitable areas)

# Option 3: Sample from candidate pool
candidate_sample <- grid_sf[sample(nrow(grid_sf), 500), ]

When to Use Maxvol

βœ… Use maxvol when:

  • Features strongly correlate with target variable
  • You want deterministic, reproducible sampling
  • Feature diversity is more important than geographic spread
  • Sample size is limited
  • You’re doing model-based inference (kriging, ML)

❌ Don’t use maxvol when:

  • You need probability-based sampling for unbiased estimation
  • Features don’t explain the target variable well
  • Pure geographic coverage is the goal
  • You need strictly random samples

References

  • Petrovskaia, A., Ryzhakov, G., & Oseledets, I. (2021). Optimal soil sampling design based on the maxvol algorithm. Geoderma, 383, 114733. DOI: 10.1016/j.geoderma.2020.114733

  • Goreinov, S. A., Oseledets, I. V., Savostyanov, D. V., Tyrtyshnikov, E. E., & Zamarashkin, N. L. (2010). How to find a good submatrix. In Matrix Methods: Theory, Algorithms And Applications (pp.Β 247-256). World Scientific.

  • Fedorov, V. (1972). Theory Of Optimal Experiments. Academic Press.

  • Walvoort, D.J.J., Brus, D.J., and de Gruijter, J.J. (2010). An R package for spatial coverage sampling and random sampling from compact geographical strata by k-means. Computers & Geosciences, 36, 1261-1267.
